Introduction
In modern enterprise networks, maintaining a loop-free topology is critical. A small misconfiguration at Layer 2 can lead to broadcast storms and even complete network failure. That’s why Spanning Tree Protocol (STP) is used to ensure stability, and at the heart of it lies the Root Bridge Election Process in Cisco Switch.
The root bridge controls how traffic flows across the entire network. If the wrong switch becomes the root bridge, it can result in inefficient routing and performance issues.
From my real-world experience, I’ve seen that when the root bridge is not properly defined, it often leads to unnecessary traffic flow and network instability.
To understand how this process works across VLAN-based networks, you should also explore the PVST election process explained
To understand this concept in more depth, you should read our PVST election process explained
Understanding how STP selects the root bridge becomes much easier when you clearly understand the Bridge ID in STP priority and MAC address election process, as it directly controls which switch takes the leadership role in the network.
What is Root Bridge in Cisco Switch?
The root bridge is the central switch in a spanning tree topology.
Key roles:
- Acts as the reference point for all switches
- Determines the overall network path structure
- Controls Layer 2 traffic flow
👉 In simple terms, the root bridge is the decision-maker of the network
From a practical perspective, I’ve observed that in many networks, the wrong switch becomes the root bridge simply because default settings are never changed.

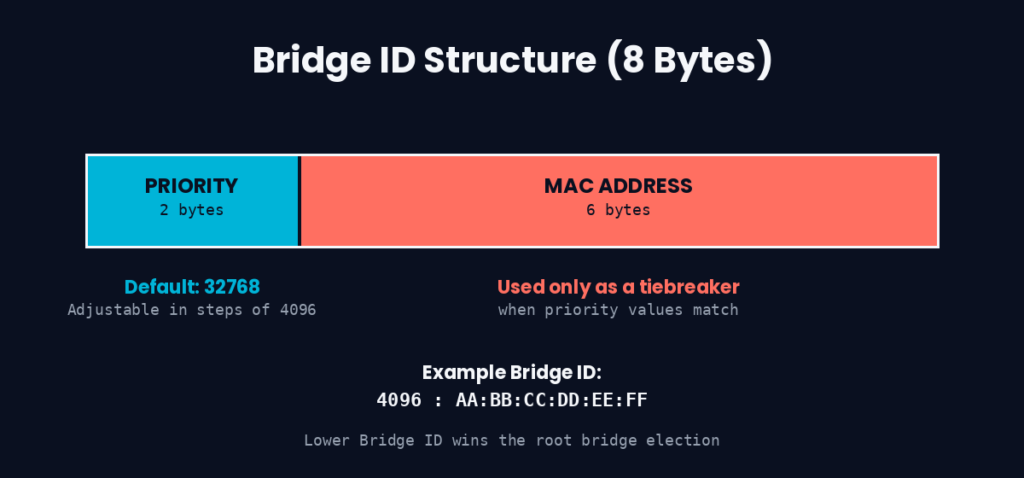

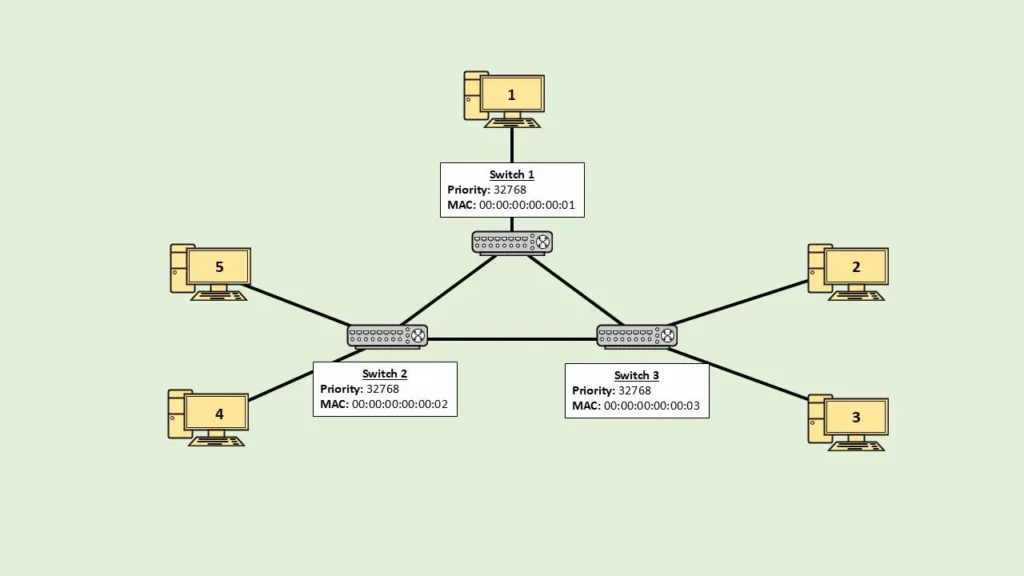

Bridge ID and Its Components
The election of the root bridge depends on the Bridge ID.
Bridge ID components:
- Priority (configurable value)
- MAC Address (unique hardware identifier)
How it works:
- Lower priority = higher chance to become root bridge
- If priority is equal → lowest MAC address wins
👉 These Bridge ID components form the foundation of the election process.
In my experience, many engineers overlook the role of the MAC address, even though it becomes critical when priorities are the same.
Root Bridge Election Process in Cisco Switch Explained (Step-by-Step)
The Root Bridge Election Process in Cisco Switch is a key part of Spanning Tree Protocol (STP) that determines how switches communicate and form a loop-free network. In this section, we will break down the complete STP root bridge election process step by step so you can understand it easily, even as a beginner.
Step 1: Switches Send BPDUs
All switches exchange BPDUs (Bridge Protocol Data Units) containing their Bridge ID.
Step 2: Compare Bridge IDs
Each switch compares its Bridge ID with the received ones.

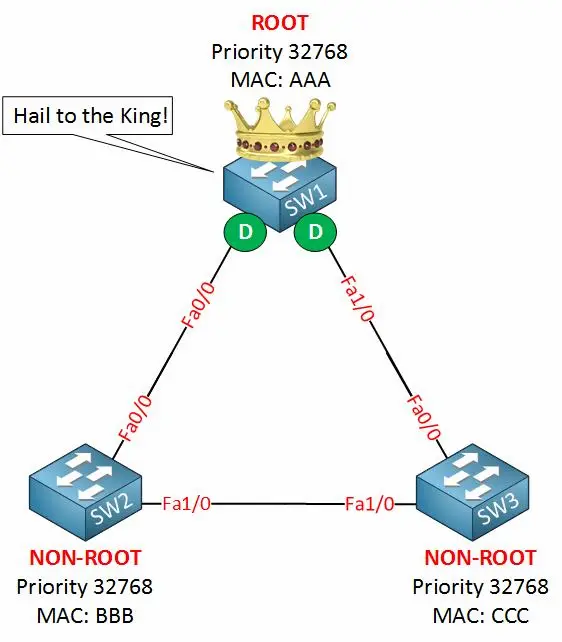

Step 3: Lowest Bridge ID Wins
👉 The switch with the lowest Bridge ID becomes the root bridge
- Priority is evaluated first
- MAC address is used as a tie-breaker
This is the core logic behind the Root Bridge Election Process in Cisco Switch.
This behavior becomes even more important in VLAN environments, where the PVST election process explained helps manage multiple spanning tree instances.
For a deeper understanding, refer to root bridge election explained Cisco switches
In real-world Cisco environments, I’ve noticed that if priority is not manually configured, an unexpected switch often becomes the root bridge, which negatively impacts performance.
The switch with the lowest Bridge ID becomes the root bridge…
Watch this quick video to understand the root bridge election process visually:
This video explains the root bridge election process in Cisco switches with real examples.
BPDU Timing Explained
BPDUs are control messages that switches use to maintain the spanning tree.
Default BPDU timing:
- Hello Time: 2 seconds
- Max Age: 20 seconds
- Forward Delay: 15 seconds
👉 These timers ensure consistent communication across the network.
For official insights, check the spanning tree root bridge and root port selection Cisco discussion
From practical scenarios, understanding BPDU timing is important because delays in these messages can slow down topology convergence.

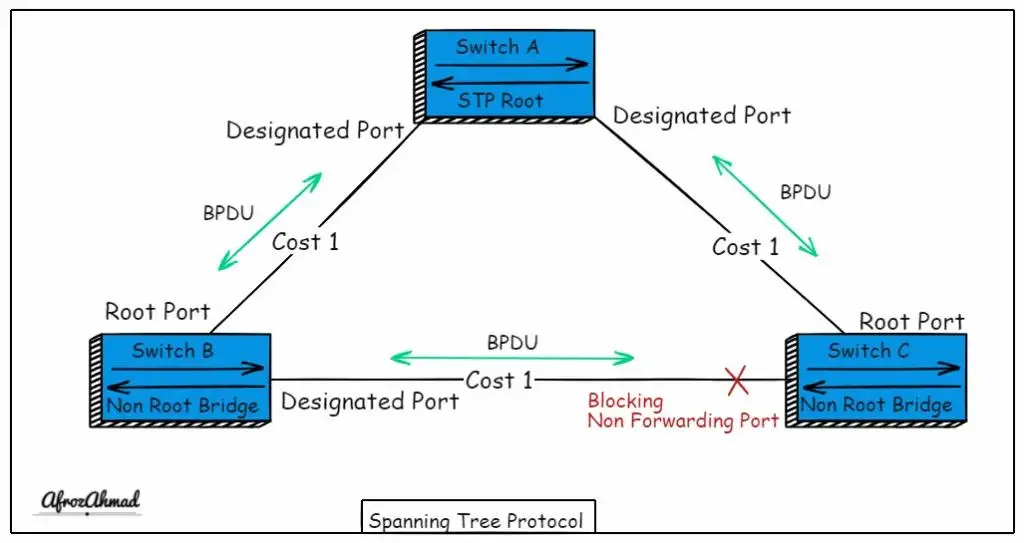

Root Port Selection
After the root bridge is selected, each switch chooses a root port.
What is a root port?
- The port with the lowest cost path to the root bridge
Selection criteria:
- Lowest path cost
- If equal → lowest port ID
👉 This is known as root port selection
In my experience, incorrect root port selection can cause traffic to follow longer paths, increasing latency.

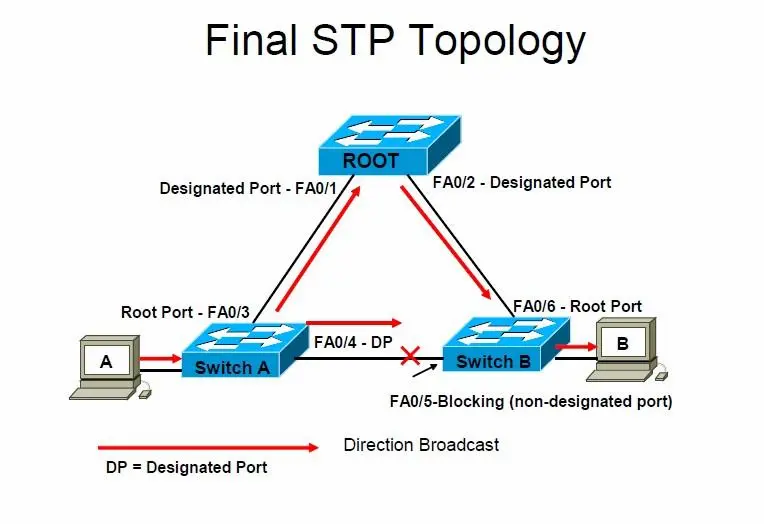

Alternate Port Selection
An alternate port acts as a backup path.
Key points:
- Used when the primary path fails
- Remains in blocking state during normal operation
- Provides redundancy
👉 This is called alternate port selection
In real-world deployments, alternate ports play a crucial role in maintaining network availability during link failures.
This concept is closely related to network redundancy using Stateful Switchover

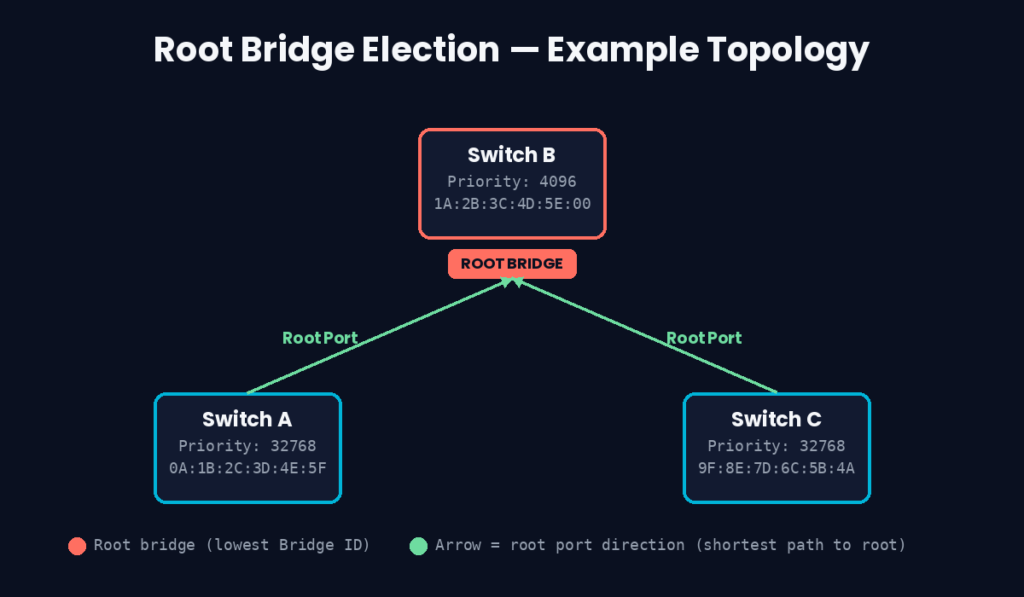

Example Scenario
Let’s consider a simple network:
- Switch A → Priority 32768
- Switch B → Priority 4096
- Switch C → Priority 32768
Result:
- Switch B has the lowest priority
- It becomes the root bridge
- Other switches select their root ports toward it
👉 This is a practical example of how root bridge election works.
You can also explore a detailed STP root bridge election process guide for more clarity.
Common Mistakes to Avoid
Many beginners make these mistakes:
- Not manually configuring the root bridge
- Leaving default priority on all switches
- Ignoring network design principles
- Not understanding STP behavior
👉 These mistakes can lead to:
- Incorrect root bridge selection
- Network instability
- Performance issues
During my work, I’ve seen that one of the most common issues is poor spanning tree design, which often leads to unexpected outages.
Best Practices
1. Manually Configure Root Bridge
Always assign a lower priority to your core or distribution switch.
In large enterprise environments, concepts like scalability of DMVPN in large networks also play an important role in overall network design.
2. Design Network Properly
- Place root bridge at the center of the network
- Avoid access switches becoming root
3. Monitor STP Regularly
Continuously check spanning tree status to maintain optimal performance.
Author Insight:
This guide is based on real-world Cisco network configurations and practical experience in managing Layer 2 network stability and spanning tree behavior.
Conclusion
The Root Bridge Election Process in Cisco Switch is not just a theoretical concept—it directly affects network performance and reliability.
By understanding Bridge ID, BPDU timing, root port selection, and alternate port behavior, you can design efficient and stable networks.
For a deeper understanding of how spanning tree works per VLAN, refer to the PVST election process explained
Similar optimization concepts also apply in wireless environments like WiFi 6 vs WiFi 5 for home networks
From a practical standpoint, engineers who fully understand root bridge election are able to build far more predictable and resilient network infrastructures.
👉 Master this concept early, or it may become the reason behind real-world network issues.
FAQs
What is root bridge in Cisco switch?
The root bridge is the main switch in a spanning tree network that acts as the central reference point for all path calculations.
How is root bridge elected in STP?
The root bridge is selected based on the lowest Bridge ID, which includes priority and MAC address.
What is Bridge ID in STP?
Bridge ID is a combination of priority and MAC address used to determine the root bridge.
How often are BPDUs sent?
By default, switches send BPDUs every 2 seconds (Hello Time).
What is the difference between root port and designated port?
The root port is the best path to the root bridge, while the designated port forwards traffic on a network segment.
What is alternate port in STP?
An alternate port is a backup port that becomes active if the primary path fails.
